THE BARBER SURF RAKE IS THE WORLD LEADER AND IS USED
IN OVER 40 COUNTRIES ON 5 CONTINENTS.

THE BARBER SURF RAKE MODEL 600HD IS THE WORLD LEADER AND IS USED
IN OVER 40 COUNTRIES ON 5 CONTINENTS.

THE BARBER SURF RAKE MODEL 600HD IS THE WORLD LEADER AND IS USED
IN OVER 40 COUNTRIES ON 5 CONTINENTS.

THE BARBER SURF RAKE MODEL 600HD IS THE WORLD LEADER AND IS USED
IN OVER 40 COUNTRIES ON 5 CONTINENTS.

SALES

Both new and pre-owned

FACTORY QUALIFIED SERVICE

With The Kendrick Service Guarantee

OEM PARTS

With Guaranteed Delivery

Beach Cleaning Machines manufactured by H. Barber & Sons, Inc. are the most widely used beach cleaning equipment in the US domestic market and the international beach cleaning machine market. Pioneers in beach cleaning methods, Barber has manufactured beach cleaning equipment for more than 50 years.

OUR MOST POPULAR

SURF RAKE

The Barber SURF RAKE is the world’s most popular beach cleaning machine and is used in over 90 countries on 6 continents. As a tractor-towed machine, it is ideal for cleaning medium to large beaches.

ROAD RAKE

Utilizing our patented tine raking technology, Barber has designed litter collection equipment for the safe and efficient removal of debris from grass and paved surfaces.

The LITTER PICKER Model LP1 is our tractor-towed and powered litter collection machine for removing trash from large grass, soil, and paved surfaces expodentially faster than manual cleaning methods.The Road Rake combines the tine raking technology of the litter picker with rotating brushes to remove larger debris from pavement that might otherwise damage street sweepers.



TURF RAKE

The TURF RAKE is a fast and effective stone picking solution. The TURF RAKE rock rake excels at removing rock and debris from soil to prepare it for multiple applications. Among its rock raking applications, the TURF RAKE facilitate horse track and arena maintenance,golf course creation, farm seed bed preparation, and strafing range munitions removal. In addition to these specific uses, the TURF RAKE proves effective for many other stone-picking applications.

The TURF RAKE is an incredibly versatile tool for contractors, as it can be used for functions that extend beyond stone picking. It can be modified to remove litter from beaches, sandy areas, grass, and to dethatch. contractors looking to work every season all year.

BARBER FEATURES AND OPTIONS

1-866-744-9921

SURF RAKE 600 HD

Barber’s Largest Beach Rake Machine. At 3,800 pounds, the 600HD is the largest beach rake offered by H. Barber & Sons and the most widely-used beach cleaner by municipalities to clean expansive beaches. Cleaning sand up to nine (9) acres an hour with a seven (7) foot wide cleaning path, the 600HD has the greatest sand cleaning capacity of any beach cleaner in its class. The three (3) cubic yard hopper can hydraulically lift up to 4,500 pounds of material to a clearance height of nine (9) feet and dump its contents.

OPTIONS

DIMENSIONS: H: 7’6″ L: 13’1″ W: 7’8″ WEIGHT: Approx.3800 lbs CLEANING WIDTH: 7 feet CLEANING DEPTH: Adjustable to 6″ OPERATING SPEED: 1.0 to 15.0 miles per hour DEBRIS REMOVED: Broken glass, plastic, syringes, cigarette butts, pop-tops, straws, cans, tar balls, stones 3/8″ to 6″ in diameter, sea grass, seaweed, fish, small pieces of wood.

PERFORMANCE: Cleans up to 9 acres per hour HOPPER: 3 cubic yards (4,500 lbs cap) DUMP HEIGHT: 9 feet TIRES: 36 x 13.5 x 15 high flotation design CONVEYOR: Of bar flight type, covered with continuous 6′ wide belt, with stainless steel spring tines mounted on it.

HYDRAULIC DRIVE: Completely sealed and protected by the full flow filter. Large capacity spline mounted pump, hydraulic motor, flow control, and built-in overflow protection.

HYDRAULIC FLOW: 12 gallons per minute HYDRAULIC CAP: 16 gallons

CYLINDERS: Lift 3″ x18″ single acting Trip 2′ x 5′ single acting

PAINT: Dupont IMRON Polyurethane enamel TRACTOR: 60 PTO horsepower 4-wheel drive agricultural type tractor with 30″ rear wheels. 540 RPM rear PTO, 3-point hitch and depending on model and options, up to two remote hydraulic valves with raise, hold and float positions. Larger or smaller tractors may be used depending on beach conditions.

SURF RAKE 400HD

Mid-Sized Mechanical Beach Rake The 400HD has proven to be an excellent choice for resorts, hotels and lakeshore communities. At 2,700 pounds, it is the medium-sized beach rake in the SURF RAKE lineup. It is equipped with a two (2) cubic yard hopper that will lift 3,500 pounds of debris from the sand to a dumping height of nine (9) feet. This mid-size beach rake uses the same heavy-duty conveyor and dump components as the 600HD. The 400HD can clean beaches at up to seven (7) acres per hour.

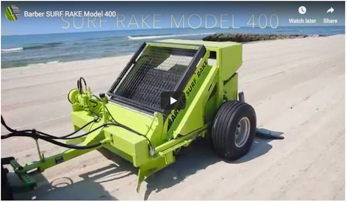

SURF RAKE 400 VIDEO

OPTIONS

DIMENSIONS: H: 7’3″ L: 11’9″ W: 7’6″ W: 7’8″ WEIGHT: Approximately 2700 lbsCLEANING WIDTH: 6 feet CLEANING DEPTH: Adjustable to 6″ OPERATING SPEED: 1.0 to 15.0 miles per hour DEBRIS REMOVED:Broken glass, plastic, syringes, cigarette butts, pop-tops, straws, cans, tar balls, stones 3/8″ to 6″ in diameter, sea grass, seaweed, fish, small pieces of wood.

PERFORMANCE: Cleans up to 7 acres per hour HOPPER: 2 cubic yards (3,500 lbs cap)DUMP HEIGHT: 9 feet TIRES: 31 x 13.5 x 15 high flotation design CONVEYOR: Of bar flight type, covered with continuous 4′ wide belt, with stainless steel spring tines mounted on it.

HYDRAULIC DRIVE: Completely sealed and protected by the full flow filter. Large capacity spline mounted pump, hydraulic motor, flow control, and built-in overflow protection.

HYDRAULIC FLOW: 12 gallons per minute HYDRAULIC CAP: 11 gallons

CYLINDERS: Lift 3″ x18″ single acting Trip 2′ x 5′ single acting

PAINT: Dupont IMRON Polyurethane enamel TRACTOR: 35 PTO horsepower 4-wheel drive agricultural type tractor with 28″ rear wheels

OTHER TRACTOR REQUIREMENTS:
540 RPM rear PTO, 3-point hitch and depending on model and options, up to two remote hydraulic valves with raise, hold and float positions. Larger or smaller tractors may be used depending on beach conditions.

SURF RAKE 400

Compact Beach Raking Machine The 400 is the most compact beach rake in the SURF RAKE lineup. It weighs 1,900 pounds and can lift up to 2,400 pounds in its one (1) cubic yard hopper. Its hydraulic operated hopper places collected material neatly on the ground. Within one (1) hour, the 400 can effectively clean up to five (5) acres of beach sand.

OPTIONS

DIMENSIONS: H: 4’5″ L: 9’10” W: 7’6″ W: 7’8″ WEIGHT: Approximately 2700 lbsCLEANING WIDTH: 6 feet CLEANING DEPTH: Adjustable to 6″ OPERATING SPEED: 1.0 to 15.0 miles per hour DEBRIS REMOVED:Broken glass, plastic, syringes, cigarette butts, pop-tops, straws, cans, tar balls, stones 3/8″ to 6″ in diameter, sea grass, seaweed, fish, small pieces of wood.

PERFORMANCE: Cleans up to 5 acres per hour HOPPER: 1 cubic yard (2,400 lbs cap) DUMP HEIGHT: Ground TIRES: 31 x 13.5 x 15 high flotation design CONVEYOR: Of bar flight type, covered with continuous 4′ wide belt, with stainless steel spring tines mounted on it.

HYDRAULIC DRIVE: Completely sealed and protected by the full flow filter. Large capacity spline mounted pump, hydraulic motor, flow control, and built-in overflow protection.

HYDRAULIC FLOW: 12 gallons per minute HYDRAULIC CAP: 11 gallons

CYLINDERS: Trip 1″ x 10″ single acting

PAINT: Dupont IMRON Polyurethane enamel TRACTOR: 30 PTO horsepower 4-wheel drive agricultural type tractor with 28″ rear wheels.

OTHER TRACTOR REQUIREMENTS:
540 RPM rear PTO, 3-point hitch and depending on model and options, up to two remote hydraulic valves with raise, hold and float positions. Larger or smaller tractors may be used depending on beach conditions.

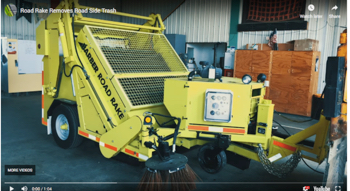

ROAD RAKE 200T

Compact Beach Raking Machine The Model 200T is Barber’s truck-powered ROAD RAKE. The rear remote hydraulic valves of the towing truck power all the hydraulic functions of the ROAD RAKE 200T. It is an excellent option for operators that have access to a towing vehicle with rear hydraulic ports.

OPTIONS

HEIGHT: 8’5″ WIDTH: 8’4″ LENGTH: 15′ 8″  WEIGHT: 6460 lbs TONGUE WEIGHT: 1900 lbs.  CLEANING WIDTH: 9’10”-11’5″ DUMPING HEIGHT : 8’7″   HOPPER CAPACITY: 4 cu. yards CLEANING SPEED1-18 mph HIGHWAY SPEED: 55 mph TIRES: 235/85R/16

DEBRIS REMOVED: Retreads, mufflers, hubcaps, cardboard, wood, paper, cans and other debris. DRIVE TRAIN: 1 9hp water-cooled diesel engine provides power. Both models provide hydraulic power to the conveyor belt, gutter brooms, hitch, and bucket lift mechanisms. An electrical control box activates all functions.

TOWING VEHICLE: Recommended: A one-ton pickup or larger truck with pintle hitch. A tractor may also tow the Road Rake Model 200. APPLICATIONS: The Barber Road Rake Model 200 removes debris from roadsides, along curbs and barricades, parks, dirt parking lots, open fields and stadiums.

WARRANTY: H. Barber & Sons, Inc. warrants its Road Rake to be free from defects in parts and workmanship for a period of 500 hours or one year, whichever occurs first.

ROAD RAKE 200

TThe Model 200 is Barber’s independently-powered ROAD RAKE. A 19 hp water-cooled engine powers the hydraulic motors that turns two gutter brushes and the conveyor belt. It also powers the cylinders that lift up to 1900 lbs. of debris in the hopper to dumping height. Because it does not require an outside hydraulic power source, the Model 200 Road Rake can be paired with any truck that weighs more than one ton and is equipped with a pintle hitch.

OPTIONS

HEIGHT: 8’5″ WIDTH: 8’4″ LENGTH: 15′ 8″  WEIGHT: 6460 lbs. TONGUE WEIGHT: 1900 lbs.  CLEANING WIDTH: 9’10”-11’5″ DUMPING HEIGHT : 8’7″   HOPPER CAPACITY: 4 cu. yards CLEANING SPEED1-18 mph HIGHWAY SPEED: 55 mph TIRES: 235/85R/16

DEBRIS REMOVED: Retreads, mufflers, hubcaps, cardboard, wood, paper, cans and other debris. DRIVE TRAIN: 1 9hp water-cooled diesel engine provides power. Both models provide hydraulic power to the conveyor belt, gutter brooms, hitch, and bucket lift mechanisms. An electrical control box activates all functions.

TOWING VEHICLE: Recommended: A one-ton pickup or larger truck with pintle hitch. A tractor may also tow the Road Rake Model 200. APPLICATIONS: The Barber Road Rake Model 200 removes debris from roadsides, along curbs and barricades, parks, dirt parking lots, open fields and stadiums.

WARRANTY: H. Barber & Sons, Inc. warrants its Road Rake to be free from defects in parts and workmanship for a period of 500 hours or one year, whichever occurs first.

TURF RAKE 600HD

At 3,800 pounds, the 600HD stone rake is H. Barber & Sons’ largest rock and stone rake. It has been successfully used in a variety of turf and soil applications. Cleaning a seven (7) foot wide path the 600HD can clean up to three (3) acres per hour. The two (2) cubic yard hopper can lift up to 3,800 pounds of material and dump its contents hydraulically from a clearance height of nine (9) feet. The TURF RAKE stone rake removes debris and leaves the area ready for immediate seeding. No additional cleanup is necessary.

OPTIONS

HEIGHT: 7’6″ WIDTH: 7′ 8″LENGTH: 13′ 1″WEIGHT: 3800 lbs.   CLEANING WIDTH: 7′  CLEANING DEPTH: Adjustable to 4″ DUMPING HEIGHT : 9′ CLEANING SPEED 1 to 9 miles per hour  TIRES: 36 x 13.5 x 15 high flotation design

DEBRIS REMOVED: Stones ¼” to 4″ in diameter, sod, roots, wood, branches and broken glass PERFORMANCE: Cleans up to 3 acres per hour HOPPER: 3 cubic yards (4,500 lbs cap)

CONVEYOR: Of bar flight type, covered with continuous 6′ wide belt, with stainless steel spring tines mounted on it. HYDRAULIC DRIVE: Completely sealed and protected by the full flow filter. Large capacity spline mounted pump, hydraulic motor, flow control, and built-in overflow protection.

HYDRAULIC FLOW: 12 gallons per minute HYDRAULIC CAP: 16 gallons CYLINDERS: Lift 3″ x18″ single acting Trip 2′ x 5′ single acting

PAINTDupont IMRON Polyurethane enamel TRACTOR: 45 PTO horsepower 4-wheel drive agricultural type tractor with 30″ rear wheels.
OTHER TRACTOR REQUIREMENTS: 540 RPM rear PTO, 3-point hitch and depending on model and options, up to two remote hydraulic valves with raise, hold and float positions. Larger or smaller tractors may be used depending on beach conditions.

TURF RAKE 400HD

At 2,700 pounds, the 400HD stone rake is H. Barber & Sons’ moderate-size stone and rock rake. It is equipped with a two (2) cubic yard hopper that will lift 2,400 pounds of debris to a dumping height of nine (9) feet. This mid-size model uses the same heavy-duty conveyor and dump components as the 600HD. The 400HD can clean up to two (2) acres per hour.

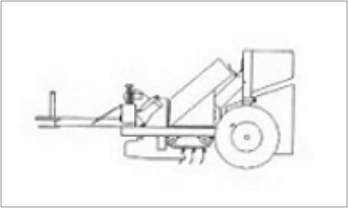

400HD DIAGRAM

OPTIONS

HEIGHT: 7′ 3″ WIDTH: 7′ 6″ LENGTH: 11′ 9″ WEIGHT: Approx. 2700 lbs.   CLEANING WIDTH: 6′  CLEANING DEPTH: Adjustable to 4″ DUMPING HEIGHT : 8′ feet  OPERATING SPEED 1.0 to 15.0 miles per hour TIRES: 31 x 13.5 x 15 high flotation design

DEBRIS REMOVED:  Stones ¼” to 4″ in diameter, sod, roots, wood, branches and broken glass PERFORMANCE: Cleans up to 2 acres per hour HOPPER: 2 cubic yards (3,500 lbs cap)

CONVEYOR:Of bar flight type, covered with continuous 4′ wide belt, with stainless steel spring tines mounted on it. HYDRAULIC DRIVE: Completely sealed and protected by the full flow filter. Large capacity spline mounted pump, hydraulic motor, flow control, and built-in overflow protection. .

HYDRAULIC FLOW: 12 gallons per minute HYDRAULIC CAP: 11 gallons CYLINDERS: Lift 3″ x18″ single acting Trip 2′ x 5′ single acting

PAINTDupont IMRON Polyurethane enamel TRACTOR: 30 PTO horsepower 4-wheel drive agricultural type tractor with 28″ rear wheels
OTHER TRACTOR REQUIREMENTS: 540 RPM rear PTO, 3-point hitch and depending on model and options, up to two remote hydraulic valves with raise, hold and float positions. Larger or smaller tractors may be used depending on TURF conditions.

TURF RAKE 400

Similar to the model 400HD, the model 400 is Barber’s smallest stone rake. It weighs 1,900 pounds and can lift up to 2,000 pounds in its one (1) cubic yard hopper. Its hydraulic discharge places material neatly on the ground. Within one (1) hour, the model 400 can effectively clean up to two (2) acres.

TURF RAKE 400 DIAGRAM

OPTIONS

HEIGHT: 4’5″  WIDTH: 7′ 6″ LENGTH: 9′ 10″ WEIGHT: Approximately 1900 lbs  CLEANING WIDTH: 6 feet CLEANING DEPTH: Adjustable to 4″ DUMPING HEIGHT: Ground OPERATING  SPEED 1 to 9 miles per hour  TIRES: 36 x 13.5 x 15 high flotation design

DEBRIS REMOVED: Stones ¼” to 4″ in diameter, sod, roots, wood, branches and broken glass PERFORMANCE:Cleans up to 2 acres per hour HOPPER: 1 cubic yard (2,400 lbs cap)

CONVEYOR: Of bar flight type, covered with continuous 4′ wide belt, with stainless steel spring tines mounted on it.

HYDRAULIC DRIVE: Completely sealed and protected by the full flow filter. Large capacity spline mounted pump, hydraulic motor, flow control, and built-in overflow protection. HYDRAULIC FLOW: 12 gallons per minute HYDRAULIC CAP: 11 gallons CYLINDERS: Trip 1″ x 10″ single acting PAINTDupont IMRON Polyurethane enamel TRACTOR: 25 PTO horsepower 4-wheel drive agricultural type tractor with 28″ rear wheels.
OTHER TRACTOR REQUIREMENTS: 540 RPM rear PTO, 3-point hitch and depending on model and options, up to two remote hydraulic valves with raise, hold and float positions. Larger or smaller tractors may be used depending on TURF conditions.

PRE-OWNED EQUIPMENT INVENTORY

1-866-744-9921

We currently do not have any used BARBER inventory. Check back often or contact us to inquiry about new machinery.

SAFETY TRAINING – PARTS – SERVICE

1-866-744-9921

INSPECTION PROGRAM

Let our expert service technicians help you keep your Barber Beach Cleaning machines working as hard as you do. Our comprehensive inspections cover top to bottom checks of your machine – from fluid levels and structural bolt torques to slings, tires and more. Regular inspections ensure your machines continue to run safely and efficiently year after year.

Contact us to schedule an inspection with our factory technicians today.

PARTS INQUIRY

Call our techicians to see if we have the part you are looking for – WE ARE FULLY STOCKED!
